엘리베이터 안전회로용 Ag 은 전기접점의 신뢰성

Reliability Engineering of Ag Electrical Contacts in Elevator Safety Systems and Raw Material Risk Management

Elevators are complex vertical transportation systems in which mechanical precision and electrical signal integrity must operate in complete synchronization. Every operational command—acceleration, deceleration, leveling, door release, emergency stop—is ultimately validated through physical electrical contact points. Among these components, Ag (silver) electrical contacts serve as critical reliability elements that directly determine system safety and operational continuity.

Silver exhibits the highest electrical conductivity among all metals. This intrinsic property enables stable current flow even in extremely low-voltage and low-current conditions. In elevator control systems, where milliamp-level signals govern safety permissions, even minor fluctuations in contact resistance can alter logical interpretation. For this reason, Ag contacts are not simply conductive materials but engineered safety components designed to maintain ultra-low contact resistance over extended repetitive cycles.

Ag Silver Contacts in Elevator Door Safety Mechanisms

The door system represents the most safety-sensitive assembly within an elevator. Door fully-closed confirmation contacts, door lock verification contacts, and micro-contacts embedded within the interlock mechanism function as conditional validation inputs before motion authorization is granted.

These contacts verify both the mechanical closure of the door panels and the precise engagement of the locking mechanism. Elevator controllers are designed so that motion is permitted only when all related contact signals indicate compliance. If a single contact experiences resistance deviation, micro-disconnection, or unstable conduction, the system interprets the condition as unsafe and immediately prevents operation.

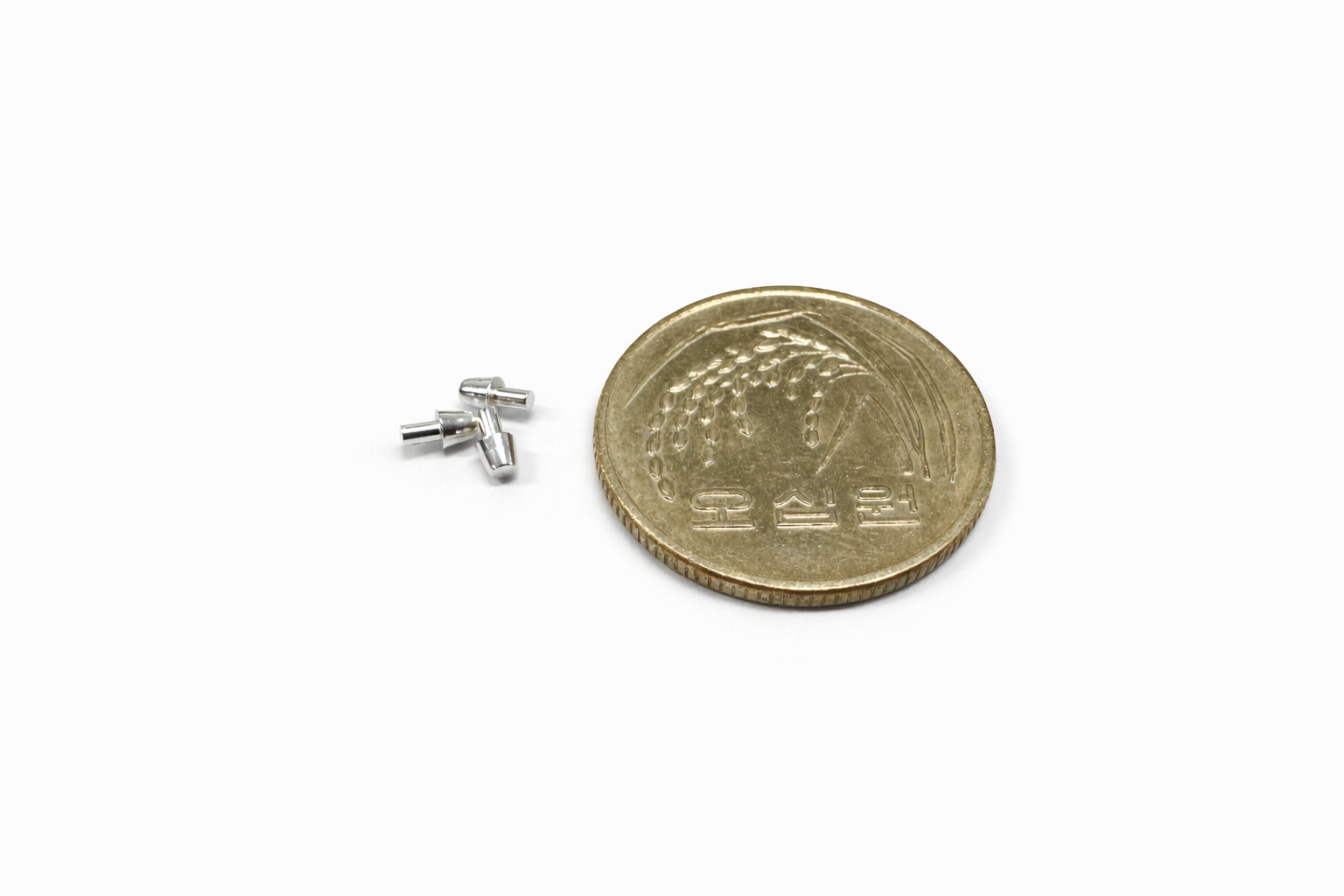

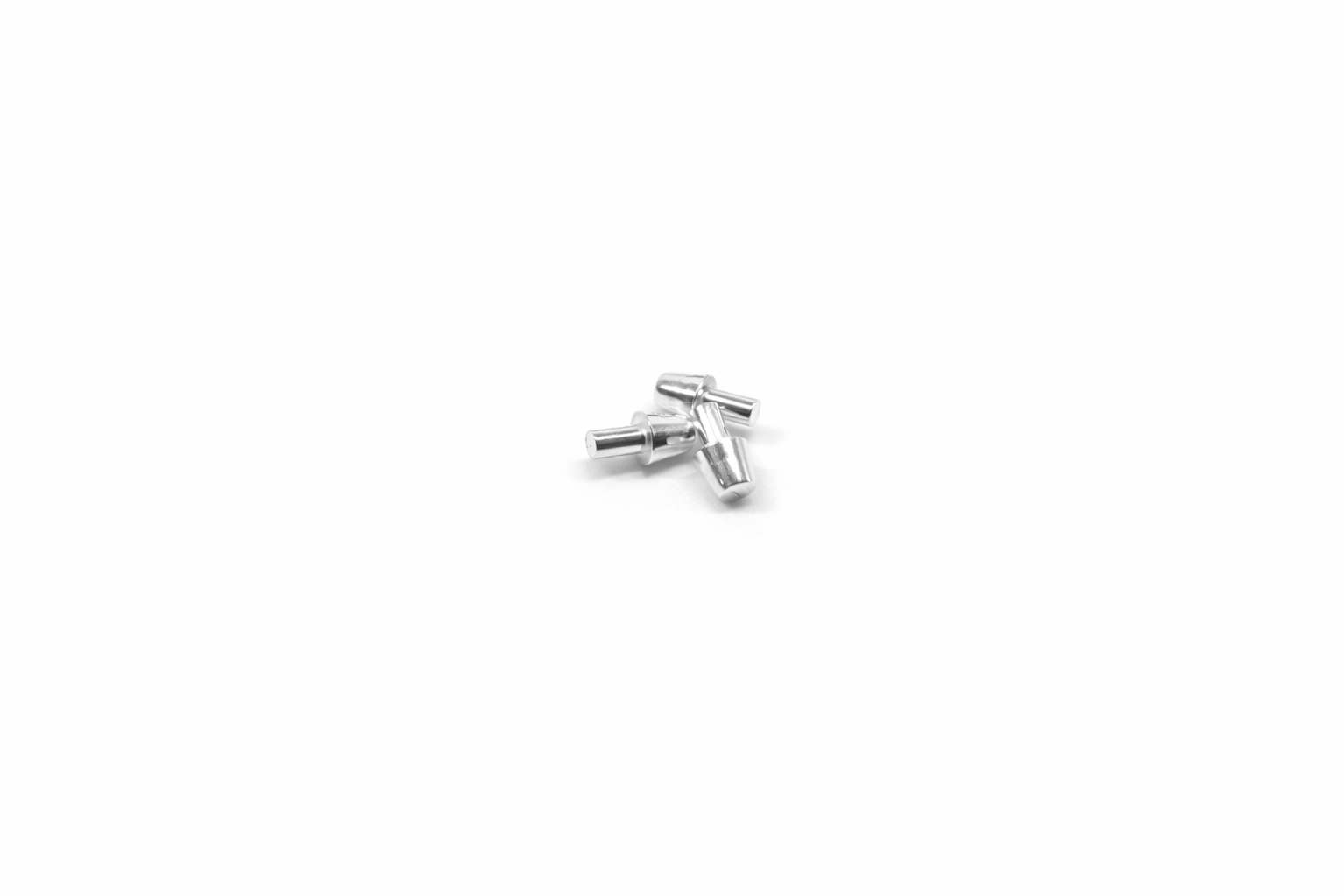

This architecture demonstrates that a millimeter-scale contact surface ultimately governs passenger safety authorization. Compact Ag contacts are selected because they combine space efficiency with stable conductivity under vibration, impact, and repetitive mechanical engagement. Surface flatness control, oxidation resistance, and consistent contact pressure behavior are fundamental to ensuring long-term reliability.

Leveling Precision and Position Detection Signal Stability

Passenger safety during boarding and disembarking depends on precise floor leveling. Even minor vertical misalignment between the car floor and landing floor can introduce safety hazards. Leveling confirmation contacts and floor position detection switches must transmit accurate signals within extremely short time intervals.

Cam-based position detection mechanisms generate signals when the car reaches predefined mechanical reference points. This action is repeated hundreds of times per day, accumulating into hundreds of thousands of operational cycles throughout the service life of the elevator. Under such conditions, Ag contact materials must maintain electrical stability despite continuous mechanical compression and surface interaction.

Minimal degradation in contact integrity can translate into millimeter-scale leveling deviation, potentially leading to door release inhibition or alignment errors. High-durability silver alloys are therefore applied to ensure both mechanical endurance and consistent electrical performance over extended operational periods.

Series Safety Circuit Architecture and Fail-Safe Design

Elevator safety circuits are typically configured in a series connection structure. Emergency stop switches, overspeed governor contacts, terminal slowdown switches, inspection mode contacts, and various interlocks are connected sequentially. If any single contact opens or becomes unstable, the entire circuit is interrupted and the elevator is brought to an immediate stop.

This design strictly follows the fail-safe principle, ensuring that any abnormality results in shutdown rather than continued operation under uncertain conditions. Within this structure, compact Ag contacts play a decisive role. Although physically small, they act as critical nodes in the safety logic chain.

Reducing contact mass minimizes the influence of vibration and inertial forces in dynamic environments. As a result, a single small silver contact can determine overall system availability and operational reliability.

Control Panel Relay Systems and Low-Current Signal Integrity

Inside the elevator control panel, numerous auxiliary relays and signal contacts interface between inverters, CPUs, sensors, and logic modules. These contacts do not typically switch high motor currents; instead, they transmit logical state information such as car position, load condition, and door status.

In low-current circuits, arc erosion is less critical than contact resistance stability. Surface oxidation or microscopic contamination can distort low-voltage signals. Therefore, pure Ag or specialized silver alloys are selected to maintain extremely low contact resistance even under reduced contact force conditions.

Different alloy compositions are utilized depending on application requirements. Silver-cadmium oxide offers strong arc resistance in medium-current environments. Silver-tin oxide provides environmental compliance and high-load durability. Silver-copper alloys enhance mechanical strength and long-term structural stability. Material selection is therefore not arbitrary but aligned with the functional stress profile of each contact location within the elevator system.

Silver Market Volatility and Its Industrial Implications

Silver occupies a unique position as both an industrial conductor and a globally traded precious metal investment asset. Compared to gold, the silver market has a smaller capitalization, making it more sensitive to liquidity shifts. Investment demand and industrial demand simultaneously influence price behavior.

A significant portion of global silver production is derived as a by-product of copper, zinc, and gold mining operations. This supply structure limits rapid production adjustments in response to price changes. Consequently, demand fluctuations directly translate into amplified price volatility.

When silver prices decline, supply does not immediately contract. When prices increase, production cannot expand rapidly. This structural inflexibility magnifies both upward and downward movements. For manufacturers of precision Ag contacts, such volatility introduces substantial cost management challenges and procurement risk considerations.

Material Reliability and Limited Substitution in Safety Applications

Despite price variability, Ag contacts remain difficult to replace in high-reliability safety applications. The combination of ultra-low contact resistance, superior conductivity, stable oxide characteristics, and long-term cycling durability provides performance attributes that few alternative materials can fully replicate in micro-signal environments.

The absolute quantity of silver used in an individual elevator contact is relatively small, yet its functional value is directly tied to passenger safety. Attempts to reduce material quality for short-term cost optimization may introduce disproportionate maintenance risk and operational liability.

High-reliability Ag contact engineering therefore extends beyond component fabrication. It requires disciplined alloy optimization, surface treatment control, life-cycle testing, and strategic raw material sourcing management. Sustainable elevator safety performance depends not only on mechanical design but equally on the stability and integrity of its smallest electrical interfaces.

Ag silver electrical contacts, though physically compact, function as reliability anchors within elevator safety architectures. When robust contact engineering is integrated with structured material risk management, the elevator industry can achieve sustained operational safety, economic resilience, and long-term system integrity.
