반도체·항공우주 산업을 연결하는 CNC 육각 소켓 너트 패스너
CNC 가공 기반의 육각 소켓 너트 패스너는 초정밀 체결이 요구되는 산업 전반에서 핵심적인 역할을 수행합니다. 내부 육각 소켓 구조를 통해 제한된 공간에서도 높은 체결 토크를 안정적으로 전달할 수 있으며, 반복 조립 환경에서도 체결 신뢰도를 유지하는 것이 특징입니다. 이러한 구조적 장점과 정밀 가공 기술의 결합으로 인해 반도체 장비, 의료기기, 항공우주 시스템 등 고신뢰 산업 분야에서 필수적인 패스너 부품으로 활용되고 있습니다.
육각 소켓 너트의 구조적 특성과 기계적 장점

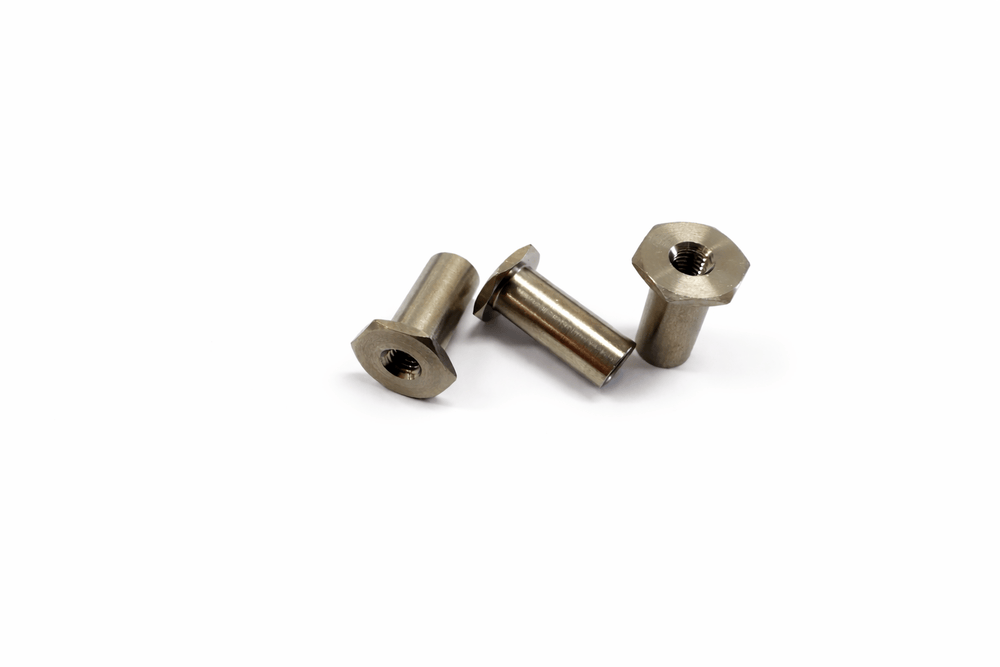

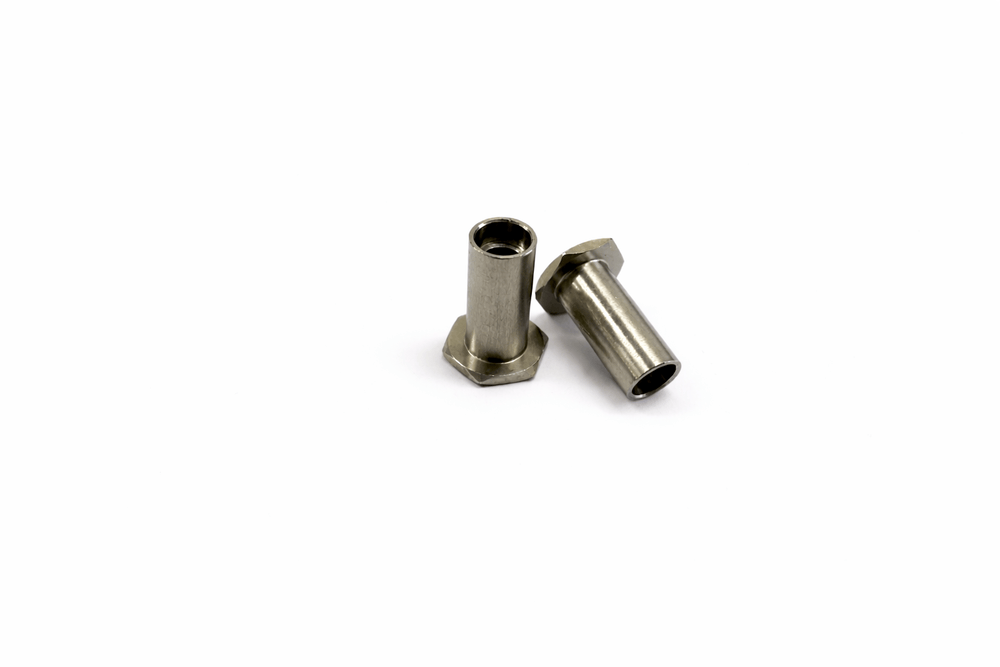

육각 소켓 너트는 내부에 정밀 가공된 육각형 홈이 형성되어 있어 알렌 렌치 또는 헥스 키를 이용한 체결이 가능합니다. 외부 형상 대비 내부 구동 방식이기 때문에 체결 시 공구 이탈 가능성이 낮고, 토크 손실이 최소화됩니다. 특히 정밀 장비 내부처럼 접근성이 제한된 구조물에서도 안정적인 조립이 가능하며, 외부 돌출부가 없어 장비 설계의 자유도를 높이는 장점이 있습니다.
또한 체결 시 접촉 면적이 균일하게 분산되어 국부 응력 집중을 줄일 수 있으며, 진동 환경에서도 풀림 현상이 상대적으로 적습니다. 이러한 특성은 고속 반복 동작이 이루어지는 자동화 장비나 로보틱스 시스템에서 중요한 요소로 작용합니다.
반도체 및 디스플레이 장비에서의 적용 특성
반도체 및 디스플레이 제조 장비는 미세 공정과 정밀 위치 제어를 기반으로 구성됩니다. 장비 내부의 프레임, 진공 챔버, 웨이퍼 이송 시스템 등은 수 마이크론 단위의 정렬 정확도를 요구하며, 체결 부품의 미세한 오차도 장비 성능에 직접적인 영향을 미칩니다.
육각 소켓 너트는 CNC 가공을 통해 치수 공차를 정밀하게 관리할 수 있어 이러한 환경에 적합합니다. 특히 자동 선반 및 머시닝 센터를 활용한 가공 공정에서는 나사산 형상, 소켓 깊이, 동심도를 정밀하게 제어할 수 있어 반복 조립 시에도 동일한 체결 품질을 유지합니다. 디스플레이 생산 라인에서는 장비 진동으로 인한 체결 이완을 방지하는 요소로 활용되며, 장시간 연속 가동 환경에서도 안정성을 확보합니다.
의료기기 산업에서 요구되는 소재 및 표면 조건
의료기기 분야에서는 기계적 강도뿐만 아니라 생체 적합성과 내식성이 중요한 평가 기준이 됩니다. MRI 장비, 수술 로봇, 진단 장비와 같은 시스템은 멸균 환경에서 반복적으로 사용되며, 세척 및 소독 과정에서도 표면 열화가 발생하지 않아야 합니다.
이러한 조건을 충족하기 위해 육각 소켓 너트에는 주로 스테인리스 강 계열 소재가 적용됩니다. 오스테나이트계 스테인리스 강은 내식성이 우수하고 비자성 특성을 가져 의료 장비에 적합하며, 몰리브덴이 첨가된 소재의 경우 염화물 환경에서도 안정적인 표면 상태를 유지합니다. 표면 패시베이션 처리를 통해 산화 피막을 강화함으로써 장기간 사용 시에도 부식 발생을 억제합니다.
항공우주 산업에서의 고강도·경량화 요구
항공우주 분야에서 사용되는 패스너는 극한 환경을 전제로 설계됩니다. 고온과 저온이 반복되는 조건, 지속적인 진동과 피로 하중, 그리고 무게 절감 요구가 동시에 적용됩니다. 육각 소켓 너트는 이러한 조건을 만족하기 위해 고강도 합금강이나 특수 합금 소재로 제작되며, 열처리를 통해 인장 강도와 항복 강도를 강화합니다.
엔진 마운트, 항공기 구조 프레임, 위성 장비 체결부 등에서는 체결 신뢰도가 시스템 안전성과 직결되므로, 나사산 형상과 표면 상태에 대한 관리가 특히 중요합니다. 항공우주용 육각 소켓 너트는 반복 피로 하중에서도 체결력을 유지하도록 설계되며, 고온 환경에서도 코팅 박리나 재질 열화가 발생하지 않도록 공정 관리가 이루어집니다.
육각 소켓 너트에 적용되는 주요 소재 특성
육각 소켓 너트의 소재 선택은 사용 환경과 요구 성능에 따라 결정됩니다. 일반 산업용으로는 가공성이 우수하고 비용 효율적인 탄소강이 사용되며, 기본적인 기계적 강도를 확보할 수 있습니다. 다만 습도나 부식 환경에서는 추가적인 표면 처리가 필요합니다.
고하중 환경에서는 크롬이나 몰리브덴이 첨가된 합금강이 적용되며, 열처리 공정을 통해 높은 인장 강도와 피로 수명을 확보합니다. 스테인리스 강은 내식성이 요구되는 환경에서 활용되며, 해양 장비나 의료기기, 반도체 설비에 적합합니다. 전기적 특성이 중요한 전자 및 반도체 분야에서는 구리 계열 소재가 사용되며, 우수한 전도성과 열 방출 특성을 제공합니다.
소재 선택 시에는 인장 강도, 항복 강도, 경도와 같은 기계적 특성뿐만 아니라, 사용 온도 범위, 화학적 환경, 가공성, 비용 요소까지 종합적으로 고려됩니다.
표면 처리 공정과 기능적 역할
표면 처리는 육각 소켓 너트의 내구성과 신뢰성을 결정하는 핵심 공정입니다. 산화 피막을 형성하는 블랙 옥사이드 처리는 기본적인 부식 방지와 미끄럼 억제 효과를 제공하며, 외관의 일관성을 유지합니다. 아연 도금은 희생 부식 원리를 통해 모재를 보호하며, 산업 전반에서 폭넓게 적용됩니다.
아연-알루미늄 복합 코팅 계열은 고온 환경에서도 안정적인 내식 성능을 유지하며, 환경 규제 대응 측면에서도 활용도가 높습니다. 니켈 도금은 균일한 표면과 내마모성을 제공하여 전자 장비에 적합하며, 스테인리스 강에는 패시베이션 처리를 통해 자연 산화 피막을 강화합니다.
이러한 표면 처리 공정은 코팅 두께, 접착력, 내식 성능에 대한 검증을 거쳐 적용되며, 장기 사용 환경을 고려한 시험 평가가 병행됩니다.
CNC 기반 제조 공정과 정밀도 확보
육각 소켓 너트는 대량 생산과 고정밀 요구를 동시에 만족하기 위해 다양한 제조 공정을 조합하여 생산됩니다. 콜드 단조를 통해 기본 형상을 성형한 후, CNC 선삭과 밀링 공정을 적용하여 외형과 내부 소켓을 정밀 가공합니다. 나사산은 롤링 공법을 활용하여 표면 피로를 줄이고 내구성을 향상시킵니다.
고정밀 제품의 경우 CAD 및 CAM 기반 설계를 통해 가공 경로를 최적화하며, 가공 중 발생할 수 있는 변형과 응력 분포를 사전에 분석합니다. 최근에는 공정 데이터 기반의 품질 모니터링과 자동 검사 시스템을 도입하여 가공 편차를 최소화하고 있습니다.
성능 시험과 품질 관리 체계
육각 소켓 너트는 출하 전 다양한 성능 시험을 거쳐 품질이 검증됩니다. 체결 토크와 축력 관계를 확인하는 토크 테스트를 통해 체결 안정성을 평가하며, 반복 하중 조건에서는 피로 시험을 통해 진동 환경에서의 내구성을 확인합니다.
비파괴 검사 기법을 활용하여 내부 결함이나 미세 균열을 확인하며, 고신뢰 산업에서는 생산 이력 관리 시스템을 통해 각 제품의 추적성을 확보합니다. 이러한 품질 관리 체계는 장기적인 신뢰성 확보와 함께 불량 발생 가능성을 최소화하는 기반이 됩니다.
정밀 산업을 지탱하는 핵심 체결 부품
육각 소켓 너트는 단순한 체결 부품을 넘어, 정밀 산업 장비의 안정성과 성능을 결정하는 요소로 작용합니다. 사용 환경에 적합한 소재 선택, 목적에 맞는 표면 처리, 그리고 CNC 기반의 정밀 가공 공정이 유기적으로 결합될 때 장기간 안정적인 체결 성능을 유지할 수 있습니다.
반도체와 디스플레이 장비, 의료기기, 항공우주 산업 등 고신뢰성이 요구되는 분야에서 육각 소켓 너트는 설계 단계부터 운용 환경까지 고려된 공정 관리와 품질 검증을 통해 적용되고 있으며, 정밀 기계 시스템의 완성도를 높이는 기반 부품으로 자리 잡고 있습니다.
CNC Hex Socket Nut Fastener Machining Technology for Semiconductor and Aerospace Industries
CNC-machined hex socket nut fasteners play a critical role across industries where ultra-precision fastening and long-term reliability are essential. Featuring an internal hexagonal drive, these fasteners enable stable torque transmission even in confined spaces and maintain consistent fastening performance under repeated assembly conditions. Through the integration of precision CNC machining, hex socket nuts have become indispensable components in high-reliability sectors such as semiconductor equipment, medical devices, aerospace systems, and advanced industrial machinery.
Structural Characteristics and Mechanical Advantages of Hex Socket Nuts
Hex socket nuts are designed with an internally machined hexagonal socket that allows tightening using Allen keys or hex wrenches. This internal drive structure minimizes tool slippage and torque loss during fastening, ensuring stable assembly even in restricted installation environments. The absence of external protrusions also supports compact equipment design and reduces interference with adjacent components.
Load distribution during tightening is more uniform compared to external-drive fasteners, which helps reduce localized stress concentration. This structural advantage improves vibration resistance and lowers the risk of loosening, making hex socket nuts particularly suitable for automated systems, robotics, and precision machinery operating under continuous motion and cyclic loads.
Application Requirements in Semiconductor and Display Manufacturing Equipment
Semiconductor and display manufacturing equipment relies on extremely precise positioning and alignment. Structural frames, vacuum chambers, wafer handling systems, and motion stages require fastening components with micron-level dimensional accuracy, as even minor deviations can affect process stability and yield.
CNC-machined hex socket nuts meet these requirements through strict control of tolerances, thread geometry, socket depth, and concentricity. Precision turning and milling processes ensure repeatable fastening quality during maintenance and reassembly. In display production lines, these fasteners contribute to vibration control and structural stability, supporting long-term operation in high-speed, high-throughput environments.
Material and Surface Requirements in Medical Device Applications
In medical equipment, fastening components must satisfy both mechanical performance and biological safety requirements. Devices such as MRI systems, surgical robots, and diagnostic instruments operate in sterilized environments and undergo frequent cleaning processes, demanding exceptional corrosion resistance and surface stability.
Hex socket nuts used in medical applications are commonly manufactured from stainless steel alloys with excellent corrosion resistance and non-magnetic properties. Surface passivation processes are applied to reinforce the natural oxide layer, improving resistance to chemical exposure and ensuring long-term reliability without surface degradation. These characteristics support consistent performance throughout extended service life in clinical environments.
High-Strength and Lightweight Considerations in Aerospace Applications
Aerospace fasteners are engineered to withstand extreme operating conditions, including temperature fluctuations, continuous vibration, and high mechanical stress, while contributing minimally to overall system weight. Hex socket nuts for aerospace use are typically produced from high-strength alloy steels or specialty alloys optimized for strength-to-weight performance.
Heat treatment processes are applied to enhance tensile strength and fatigue resistance, ensuring secure fastening in critical areas such as engine mounts, structural assemblies, and satellite components. Precision control of thread profiles and surface integrity is essential to prevent fatigue failure and maintain fastening stability throughout long operational cycles.
Material Characteristics and Selection Criteria for Hex Socket Nuts
Material selection for hex socket nuts is determined by operating environment, mechanical requirements, and manufacturing considerations. Carbon steel is widely used for general industrial applications due to its excellent machinability and cost efficiency, providing adequate strength under standard conditions. For higher load requirements, alloy steels containing chromium and molybdenum are selected to improve tensile strength, hardness, and fatigue performance.
Stainless steel materials are preferred in corrosive or hygienic environments, offering superior resistance to oxidation and chemical exposure. In electronic and semiconductor applications, copper-based materials are sometimes employed for their electrical conductivity and thermal dissipation characteristics. Final material selection accounts for mechanical properties, environmental exposure, machinability, and overall lifecycle cost.
Surface Treatment Processes and Functional Performance
Surface treatment is a key factor influencing the durability and functional reliability of hex socket nuts. Black oxide treatments form a thin oxide layer that provides basic corrosion resistance and reduces friction during assembly. Zinc plating protects the base material through sacrificial corrosion behavior and is widely used across industrial applications.
Zinc-aluminum composite coatings are applied in environments requiring enhanced corrosion resistance and thermal stability. Nickel plating offers improved wear resistance and a uniform surface finish, making it suitable for electronic equipment. Stainless steel fasteners often undergo passivation to enhance the natural protective oxide layer. Each surface treatment is applied under controlled conditions and verified through coating thickness, adhesion, and corrosion resistance testing.
CNC-Based Manufacturing Processes and Precision Control
Hex socket nuts are produced using a combination of forming and machining processes selected according to production volume and precision requirements. Cold forging is used to create the basic shape efficiently, followed by CNC turning and milling to achieve precise external geometry and internal socket features. Thread rolling processes are employed to improve surface integrity and fatigue strength of the threads.
CAD and CAM systems are utilized to optimize machining paths and minimize dimensional variation. Process simulations allow early identification of potential deformation or stress concentration issues. Advanced manufacturing environments increasingly integrate real-time process monitoring and automated inspection systems to ensure consistent quality and dimensional accuracy.
Performance Testing and Quality Assurance Systems
Before delivery, hex socket nuts undergo comprehensive performance evaluation. Torque and tension testing verifies stable fastening behavior and friction characteristics during assembly. Fatigue testing assesses resistance to vibration and cyclic loading, which is especially critical for aerospace and high-speed industrial applications.
Non-destructive inspection methods such as ultrasonic testing and X-ray inspection are used to detect internal defects or microcracks. In high-reliability industries, traceability systems are implemented to track production history and quality data for each batch or individual component, supporting long-term reliability management and continuous improvement.
Core Fastening Components Supporting Precision Industries
Hex socket nuts serve as more than simple fastening elements; they are foundational components that directly influence the stability and performance of precision industrial systems. When appropriate material selection, surface treatment, and CNC machining processes are applied in a coordinated manner, these fasteners deliver consistent and durable performance under demanding conditions.
Across semiconductor and display equipment, medical devices, aerospace systems, and advanced automation machinery, hex socket nuts are engineered with full consideration of operating environments and performance requirements. Through disciplined process control and rigorous quality verification, they continue to support the reliability and precision demanded by modern high-technology industries.
추가 정보
검색엔진용 요약
CNC hex socket nut fastener는 제한된 공간에서도 안정적인 토크 전달과 반복 체결 신뢰도를 확보하는 정밀 체결 부품입니다. 소재 선택, 표면 처리, CNC 가공 정밀도, 시험·검증 체계가 함께 관리될 때 반도체 장비부터 항공우주 구조물까지 적용 범위를 넓힐 수 있습니다.
핵심 포인트 정리
- 내부 육각 소켓 구조는 협소한 공간에서도 공구 접근성과 체결 안정성을 높입니다.
- 반도체·디스플레이 장비는 치수 공차, 동심도, 나사산 형상 관리가 성능에 직접 영향을 줍니다.
- 의료기기 적용 시 내식성, 비자성, 멸균 환경 대응을 고려한 소재와 표면 상태 관리가 필요합니다.
- 항공우주 분야는 피로 하중과 온도 변화에 대응하는 고강도 소재 및 열처리 조건 관리가 중요합니다.
- 나사산은 롤링 공정 적용 시 표면 결함이 줄어 피로 수명에 유리한 경우가 많습니다.
- 표면 처리는 부식 저항과 마찰 특성에 영향을 주므로 코팅 두께와 접착력 관리가 핵심입니다.
- 토크-텐션, 피로 시험, 비파괴 검사(NDT)로 기능적 결함을 조기에 차단합니다.
- 추적성 관리(로트, 공정 이력)는 고신뢰 산업에서 품질 관리의 기본 요건입니다.
FAQ
Hex socket nut는 일반 육각 너트와 무엇이 다릅니까?
Hex socket nut는 내부에 육각 소켓이 형성되어 알렌 렌치로 체결하는 방식입니다. 외부에서 공구를 걸기 어려운 공간에서도 체결이 가능하며, 체결 중 공구 이탈과 토크 손실을 줄이는 데 유리합니다.
반도체 장비에서 요구되는 가공 품질 포인트는 무엇입니까?
미세 정렬이 필요한 장비는 치수 공차, 평면도, 동심도, 나사산 형상 편차가 누적되면 성능 저하로 이어질 수 있습니다. 소켓 깊이와 각의 정밀도도 공구 결합 안정성에 영향을 주므로 공정 중 측정과 보정이 중요합니다.
의료기기에는 어떤 재질이 주로 적용됩니까?
내식성과 세정·멸균 환경 대응이 중요하므로 스테인리스 계열이 널리 사용됩니다. 사용 환경에 따라 비자성 요구, 염화물 노출, 표면 청정도 기준까지 함께 검토하는 것이 일반적입니다.
항공우주용 패스너에서 특히 주의할 점은 무엇입니까?
고온·저온 반복, 진동, 피로 하중이 동시에 존재하므로 소재와 열처리, 표면 처리의 조합이 중요합니다. 나사산 결함이나 코팅 박리 같은 미세 문제가 장기 피로에 영향을 줄 수 있어 검사 기준이 엄격한 편입니다.
표면 처리 선택은 어떤 기준으로 결정됩니까?
부식 환경, 온도 조건, 체결 마찰 특성, 전기적 요구 사항을 함께 고려합니다. 예를 들어 아연계 도금은 범용 내식에 유리한 편이며, 스테인리스는 패시베이션으로 표면 산화막을 강화하는 방식이 자주 사용됩니다.
토크-텐션 테스트는 왜 필요합니까?
같은 토크라도 마찰 계수와 표면 상태에 따라 실제 축력이 달라질 수 있습니다. 토크-텐션 시험은 체결 결과의 일관성을 확인하고, 풀림 위험이나 과체결 위험을 관리하는 데 활용됩니다.
나사산 가공에서 롤링과 절삭의 차이는 무엇입니까?
롤링은 소성 변형으로 나사산을 형성하는 방식이며 표면 조직이 연속적으로 이어져 피로에 유리한 경우가 있습니다. 절삭은 형상 자유도와 공차 제어에 유리할 수 있으나, 조건에 따라 표면 결함 관리가 중요해집니다.
비파괴 검사는 어떤 상황에서 적용됩니까?
내부 결함이나 미세 균열이 우려되는 고신뢰 부품에서 초음파, X선 등으로 내부 상태를 확인합니다. 항공우주, 고압 장비, 안전 관련 구조물 체결부에서는 검사 적용 비중이 높은 편입니다.
추적성 관리는 실제로 무엇을 의미합니까?
로트 번호, 원자재 정보, 열처리 조건, 코팅 이력, 검사 결과를 제품과 연결해 관리하는 방식입니다. 문제 발생 시 원인 공정을 빠르게 좁혀 재발 방지 조치를 수행하는 데 도움이 됩니다.
관련 주제 확장
정밀 체결에서 소켓 형상 품질이 중요한 이유
내부 육각 소켓은 공구와의 결합면이므로 각도, 깊이, 모서리 품질이 체결 안정성에 영향을 줍니다. 소켓이 얕거나 각이 흐려지면 공구 이탈 가능성이 높아지고, 체결 중 미끄러짐으로 체결 품질 편차가 커질 수 있습니다. CNC 공정에서는 공구 마모와 칩 배출 조건이 소켓 품질에 직접 연결되므로 공정 조건 관리가 필요합니다.
재질 선택에서 기계적 특성과 환경 조건의 균형
탄소강은 가공성과 비용 측면에서 유리하지만, 습도·화학 환경에서는 부식 관리가 필요합니다. 합금강은 높은 인장 강도와 경도를 확보할 수 있어 고하중 체결에 적합하지만, 열처리 조건에 따라 취성 리스크를 함께 검토해야 합니다. 스테인리스는 내식성이 강점이지만 절삭 저항이 높아 공구 선택과 가공 조건 최적화가 중요합니다.
표면 처리와 마찰 계수 관리의 실무 포인트
표면 처리는 내식성뿐 아니라 체결 마찰 특성에 영향을 주므로, 토크 대비 축력의 변동을 줄이려면 코팅 조건을 일관되게 유지해야 합니다. 코팅 두께가 과도하면 나사 체결 저항이 커지고, 부족하면 부식 보호 효과가 약해질 수 있습니다. 적용 분야가 정밀 장비일수록 코팅 후 치수 변화까지 고려한 설계·가공 접근이 필요합니다.
